Diffusers ControlNet Impl. & Reference Impl. generated image comparison
Implementation Source Code & versions
- Diffusers (in development version): https://github.com/takuma104/diffusers/tree/e758682c00a7d23e271fd8c9fb7a48912838045c
- Reference Impl.: https://github.com/lllyasviel/ControlNet/tree/ed0439b37ce0872789e425d46381e892dbc9b407
Environment
- OS: Ubuntu 22.04
- GPU: Nvidia RTX3090
- Cuda: 11.7
- Pytorch: 1.13.1
Scripts to generate plots:
- Create control image: create_control_images.py
- Diffusers generated image: gen_diffusers_image.py
- Reference generated image: gen_reference_image.py
- Create Plots: create_plots.py
Original image for control image:
- All images from test_imgs excepts vermeer image. Croped and resized to 512x512px.
Generate Settings:
Control Images:
Converted above original images by controlnet_hinter.
Prompts:
All images were generated with the same prompt.
- Prompt:
best quality, extremely detailed - Negative Prompt:
lowres, bad anatomy, worst quality, low quality
Ohter setting (both common):
- sampler: DDIM
- guidance_scale: 9.0
- num_inference_steps: 20
- initial random latents: created on CPU using the seed

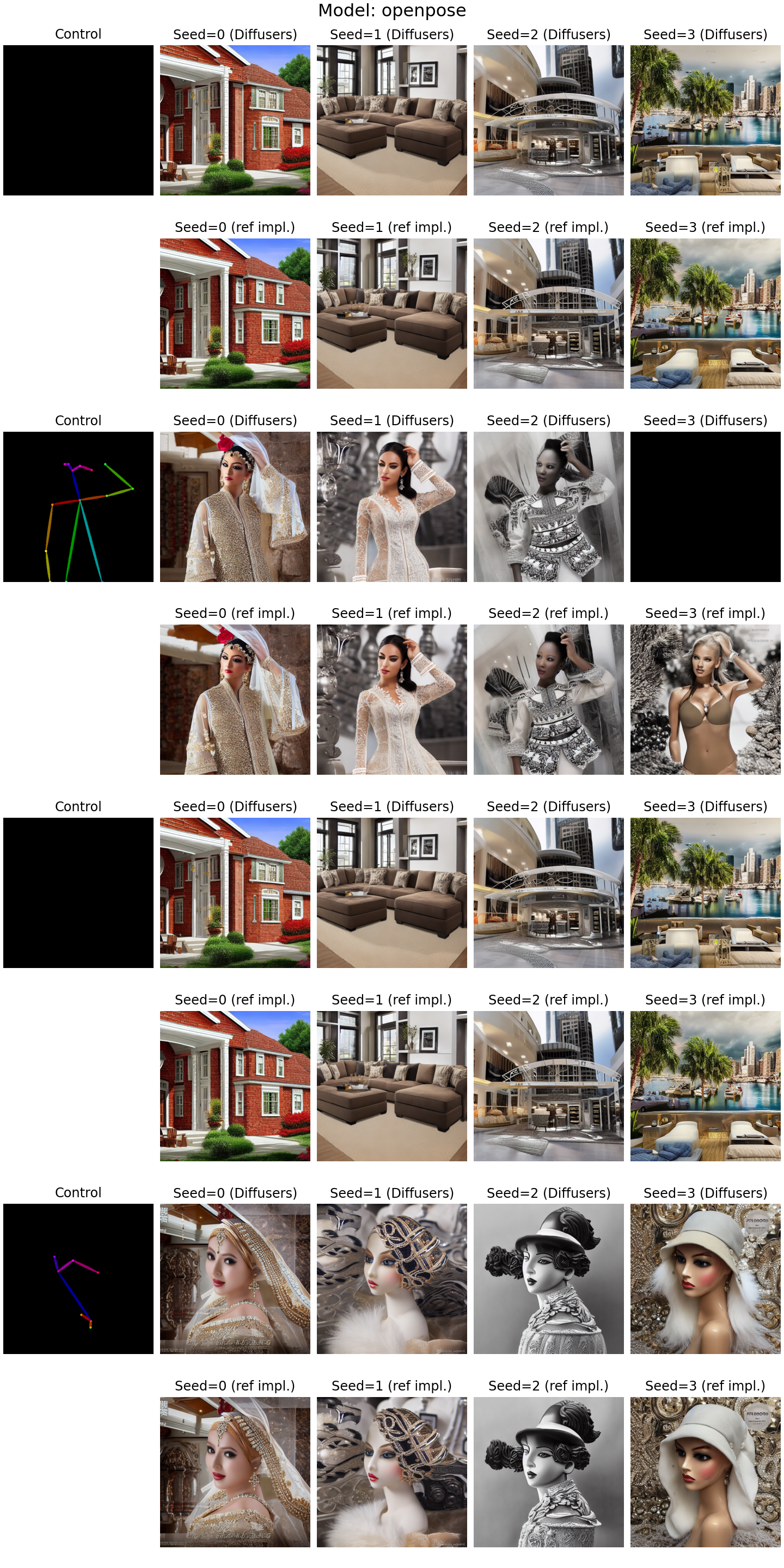

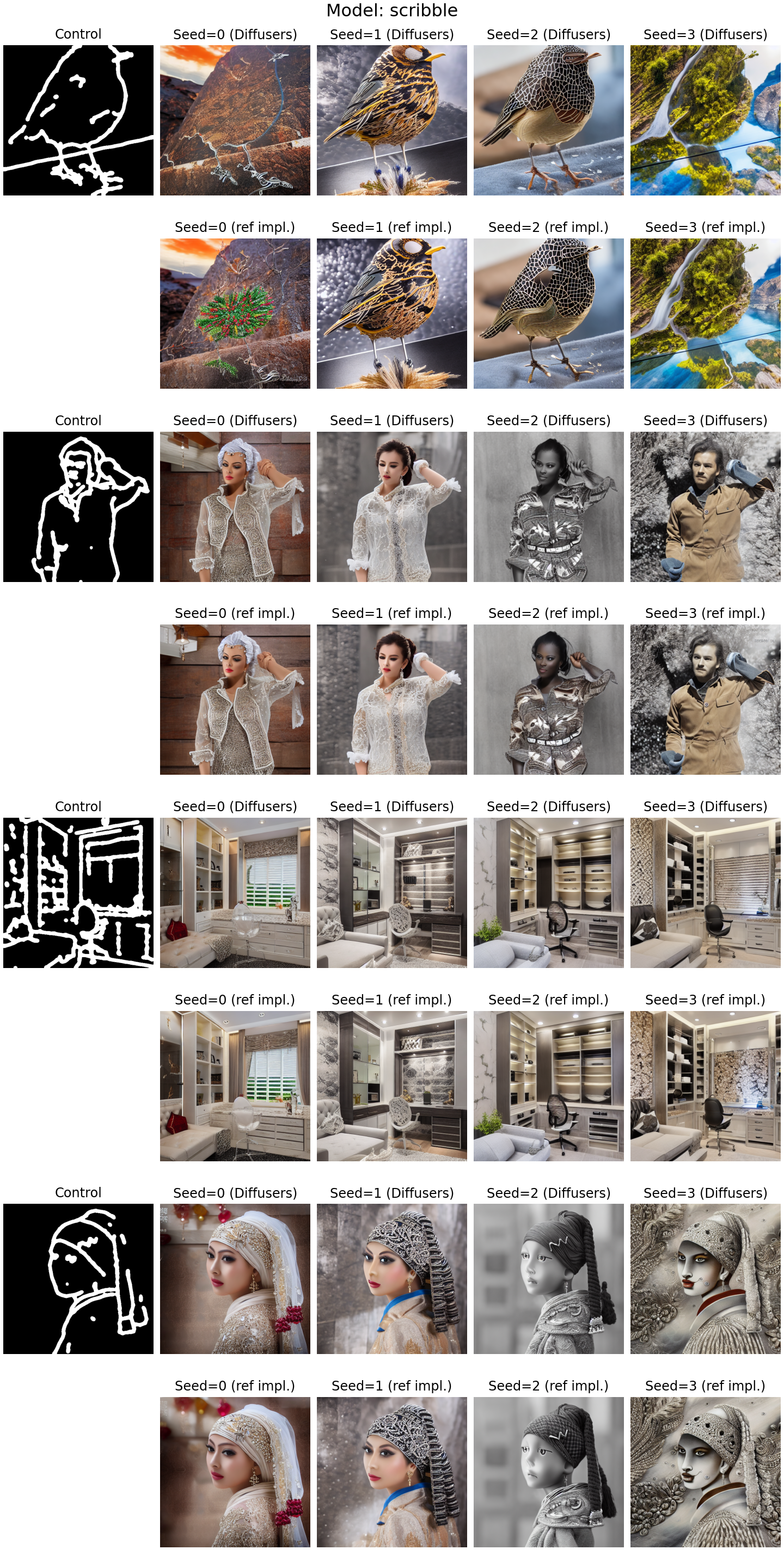

Results:
